Scissor Lifts LT

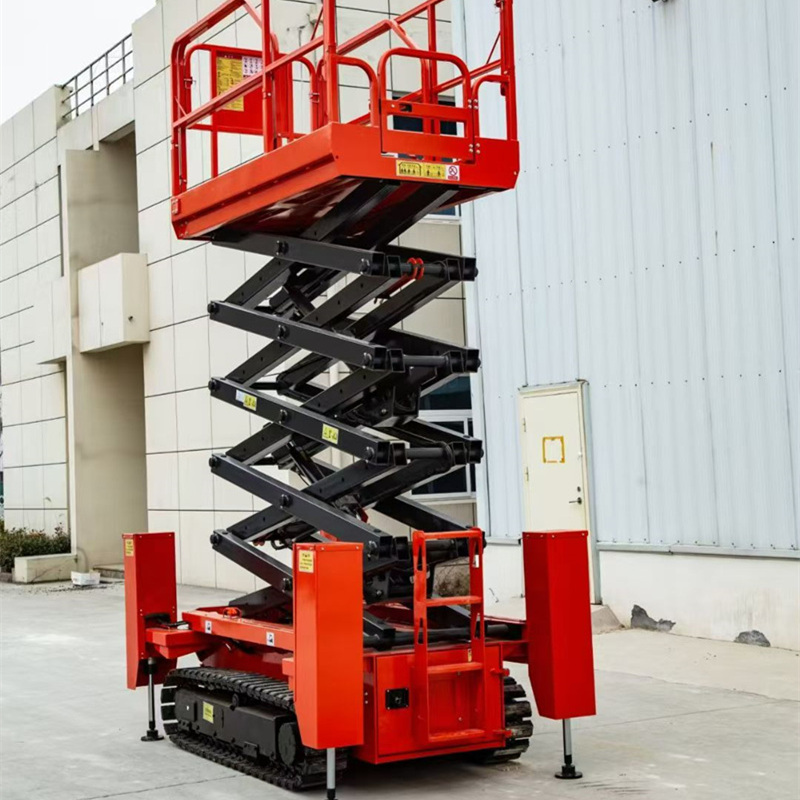

The Huaju tracked electric scissor lift platform can adapt to all terrains for height-access operations. Its tracked chassis features one-key automatic leveling outriggers, with low ground pressure, allowing it to easily handle soft soil, ditches, uneven grounds, and other challenging surfaces. It has strong off-road and obstacle-crossing capabilities, making its range of use even wider.
Note: Product specifications are subject to periodic adjustments or updates. The specifications on this website are for reference only; the actual specifications shall prevail.
| Name | Parameter | |
| Brand and Model | Brand | Huaju |
| Model | HJX0810LT | |
| Specification | Working Height | 10m |
| Platform Height | 8m | |
| Countertop dimensions (length, width, height) | 2.27×1.10×1.1m | |
| Dimensions (L×W×H, guardrail unfolded) | 2.84*1.58*2.36m | |
| Dimensions (L×W×H, with Foldable Guardrail) | 2.84*1.58*1.81m | |
| Countertop Extension Length | 0.9m | |
| Turning Radius | 0 | |
| Walking Chassis | Steel Tracks | |
| Performance | Maximum load | 450kg |
| Extension Platform Load Capacity | 113kg | |
| Lifting Speed | 3-5m/min | |
| Travel Speed | 1.8km/h | |
| Hydraulic Oil | 32#/46# | |
| Maximum Climbing Ability | 25% | |
| Maximum Allowable Working Angle | 1.5°/3° | |
| Overall machine weight | 3380kg | |
| Power | Battery | 8*6V/200ah |
| Hoisting Motor | DC48V/4.5kw | |
| Drive Motor | AC4kw | |
| Charger | 48V/30A | |
| Optional | Lithium Battery | 280ah |
| Color | Customizable | |
The Huaju tracked electric scissor lift platform can adapt to all terrains for height-access operations. Its tracked chassis features one-key automatic leveling outriggers, with low ground pressure, allowing it to easily handle soft soil, ditches, uneven grounds, and other challenging surfaces. It has strong off-road and obstacle-crossing capabilities, making its range of use even wider.
