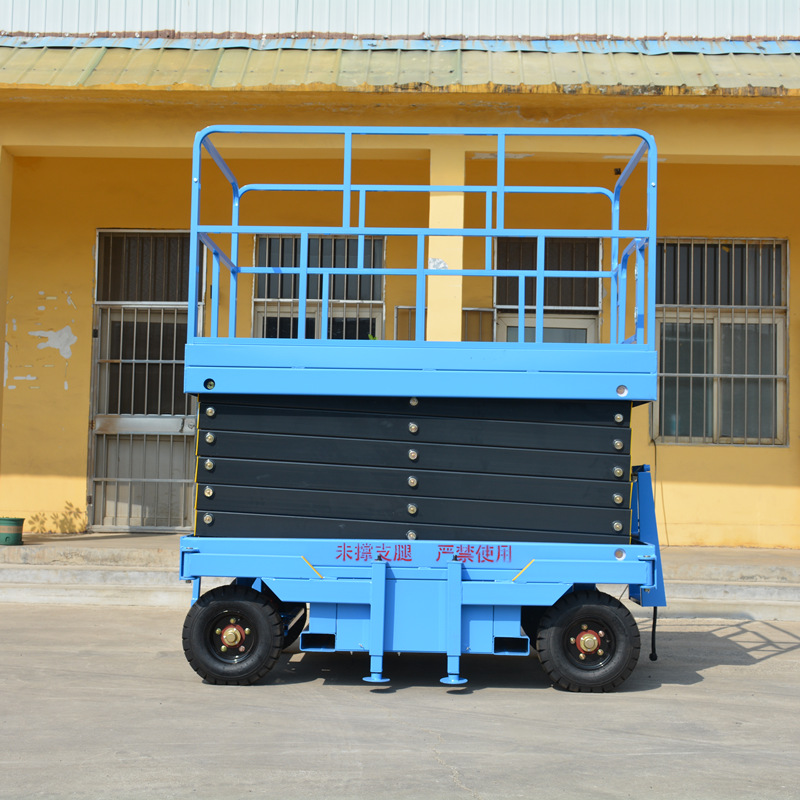

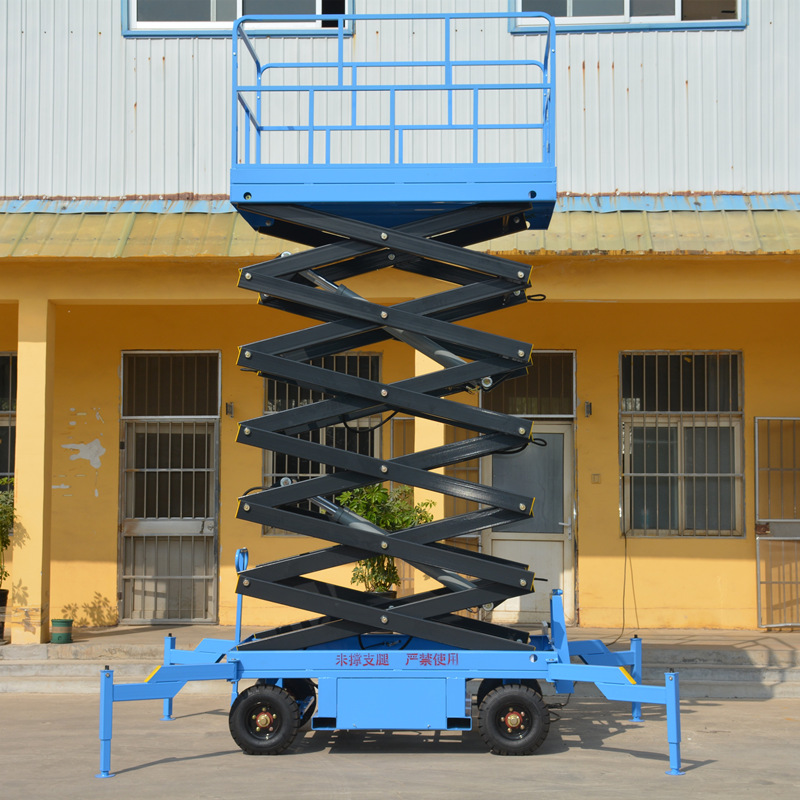

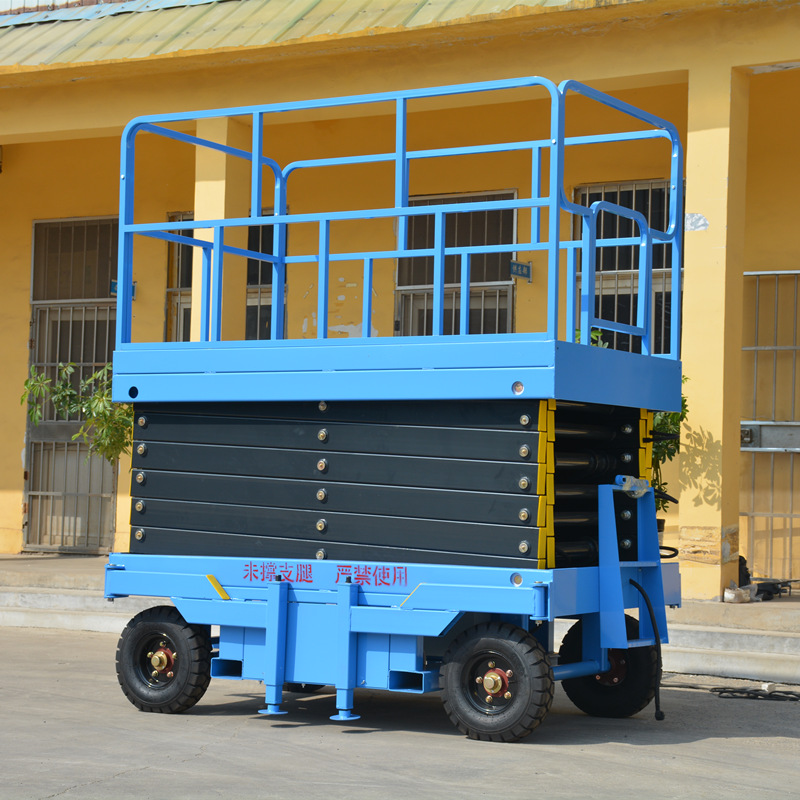

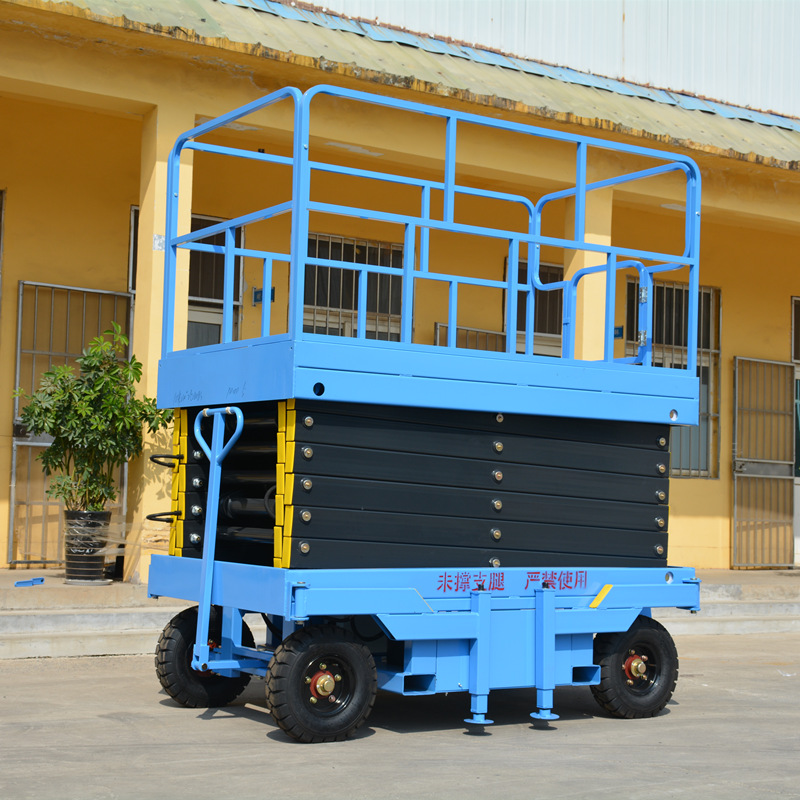

Scissor Lifts X
Before using a conventional scissor lift platform, the support legs must be extended. If you need to move it, the platform must be lowered and the support legs retracted before moving. The product features a high load capacity and low price, making it suitable for users with heavy load requirements or locations where the platform does not need to be moved after being raised.
Note: Product specifications are subject to periodic adjustments or updates. The specifications on this website are for reference only; the actual specifications shall prevail.
| Name | Parameter | |
| Brand and Model | Brand | Huaju |
| Model | HJ10-500X | |
| Specification | Working Height | 12m |
| Platform Height | 10m | |
| Countertop Size | 2100*1200mm | |
| Dimensions (L×W×H, excluding guardrail) | 2300*1350*1480mm | |
| Countertop | 3mm | |
| Tire | 500-8 | |
| Performance | Maximum Load | 500kg |
| Oil Cylinder | HSG 80/45 | |
| Hydraulic Hose | 2-10-43MPa | |
| Lifting Speed | 3-5m/min | |
| Pump Station | Tiandi Pump Station | |
| Overall Machine Weight | 1300kg | |
| Power | Voltage | 380v/220v |
| Power | 2.2kw/1.5kw | |
| Optional | Battery Lifting/Walking | Customizable |
| Explosion-proof Motor Appliances | Customizable | |
| Heavy Load | Customizable | |
| Extendable Countertop | Customizable | |
| Color | Customizable | |
| Other Customizations | Contact Customer Service | |
Before using a conventional scissor lift platform, the support legs must be extended. If you need to move it, the platform must be lowered and the support legs retracted before moving. The product features a high load capacity and low price, making it suitable for users with heavy load requirements or locations where the platform does not need to be moved after being raised.
