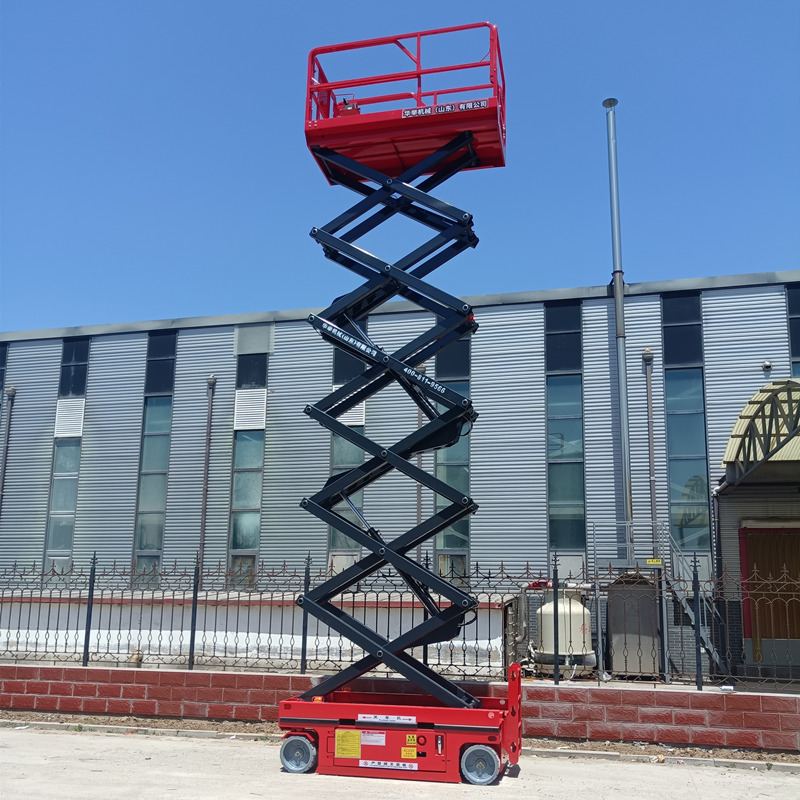

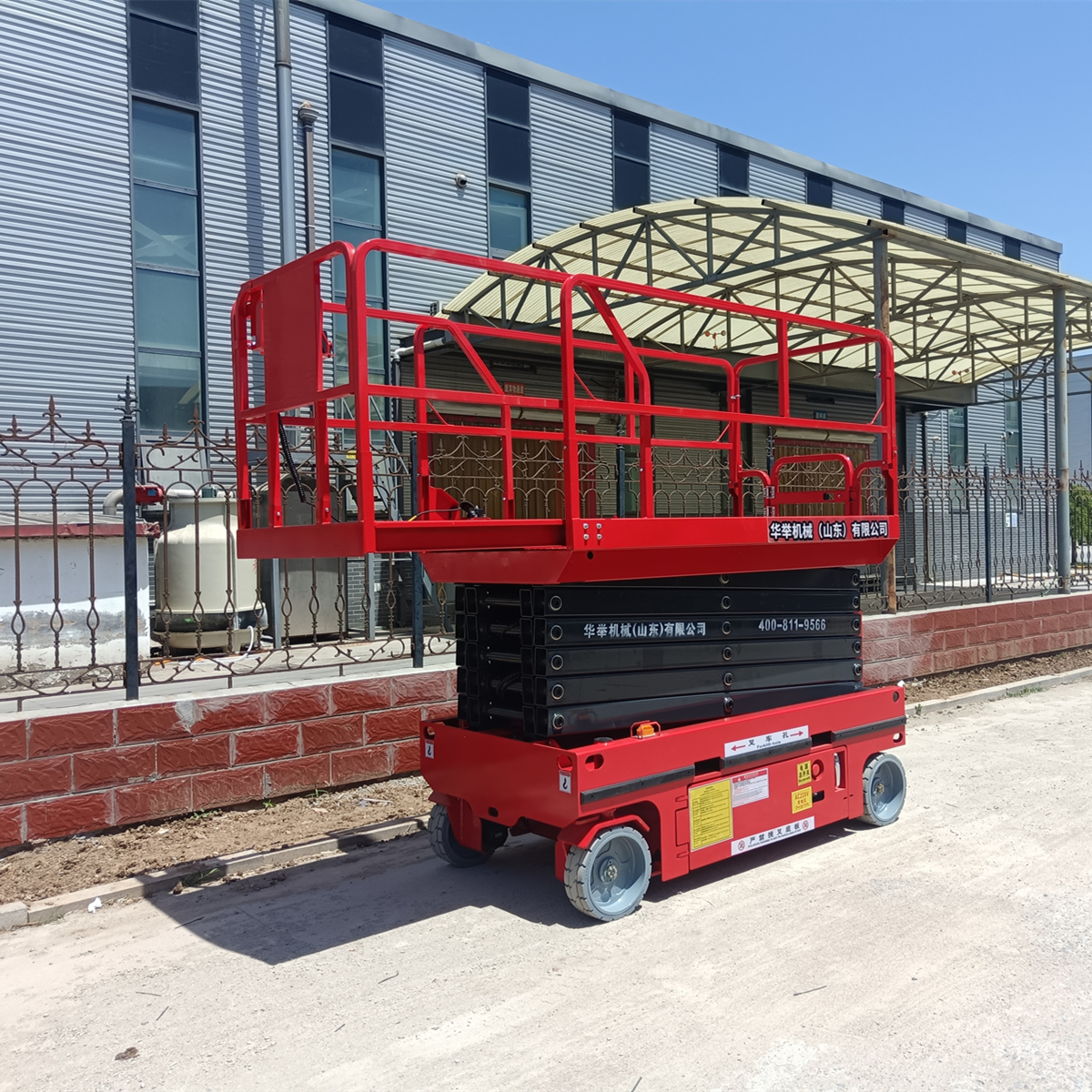

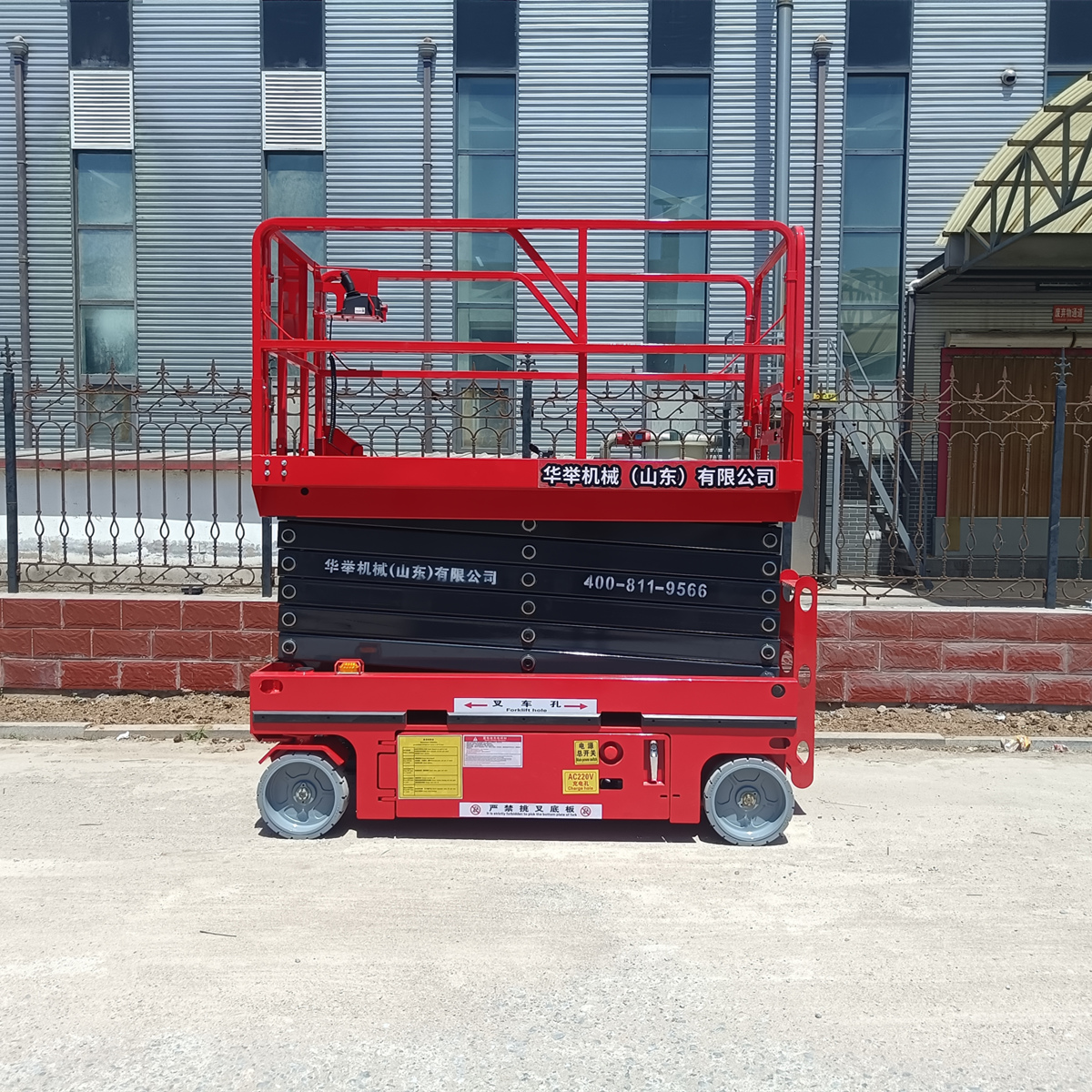

12-MeterLifts
The Huaju self-powered, self-moving aerial work platform replaces traditional bulky and complex equipment. It allows a single person to perform actions such as ascending, descending, moving forward, moving backward, and turning on the work platform. It requires no external power, offering high efficiency, labor savings, and reliable safety. It is widely used for the installation, maintenance, and cleaning of high-altitude equipment in factories, municipal projects, airports, shopping malls, and properties, and can also be used for indoor and outdoor high-altitude tasks such as streetlights and billboards.
Note: Product specifications are subject to periodic adjustments or updates. The specifications on this website are for reference only; the actual specifications shall prevail.
| Name | Parameter | |
| Brand and Model | Brand | Huaju |
| Model | HJX1214 | |
| Specification | Maximum working height | 13.8m |
| Maximum platform height | 11.8m | |
| Countertop dimensions (length, width, height) | 2270×1130×1100mm | |
| Dimensions (L×W×H, guardrail unfolded) | 2450*1170*2620mm | |
| Dimensions (Length × Width × Height, Foldable Guardrail) | 2450*1170*2060mm | |
| Countertop extension length | 0.9m | |
| Minimum ground clearance | 0.1/0.02m | |
| Wheelbase | 1.89m | |
| Turning Radius (Inner Wheel/Outer Wheel) | 0/2.2m | |
| Seamless tire | Φ381×127mm | |
| Performance | Maximum load | 320kg |
| Extension platform load capacity | 113kg | |
| Lifting speed | 3-5m/min | |
| Driving Speed (Retracted State) | 3.5km/h | |
| Travel speed (lifting state) | 0.8km/h | |
| Maximum climbing ability | 25% | |
| Maximum allowable working angle | 1.5°/3° | |
| Overall machine weight | 2900kg | |
| Power | Battery | 4*6V/200ah |
| Hoisting motor | DC4.5kw/AC3.42kw | |
| Drive motor | DC4.5kw/AC3.42kw | |
| Charger | 24V/30A | |
| Optional | Lithium battery | 280ah |
| Color | Customizable | |
Introduction and technical characteristics of Huaju brand lift truck:
1. The appearance surface treatment of Huaju scissors self-propelled aerial work platform adopts shot blasting and plastic spraying treatment, the appearance is beautiful, the branch shaft is treated with 40Cr quenching treatment, the strength is high, the surface is smooth and does not hurt the fiber bearing, compared with other manufacturers using cold-drawn steel boiling black treatment surface roughness, our quality is doubled, the whole machine shaft sleeve is welded with a diameter of 60 seamless steel pipe, its load-bearing and stability are stronger.
2. The advantages of walking at height
The steering of the Huaju scissor self-propelled aerial work platform is a two-way cylinder steering force that does not stuck when walking at high altitude and steering, and can walk fast and slow in different working states, and only one person can operate the machine to continuously complete lifting, forward, backward, steering and other actions during high-altitude work, which greatly improves work efficiency and reduces the number of operators and labor intensity compared with the traditional hydraulic platform. It is especially suitable for plant maintenance, industrial installation, equipment overhaul, municipal engineering, property management, warehouses, ports, stations, aviation airports, gas stations, gymnasiums and other large-scale high-altitude continuous operations.
3. Continuously variable speed
Only one person is required to operate, all actions are controlled by the operating handle on the worktable, and the motor is infinitely variable. It effectively extends the service life of the battery and motor, and the motor only consumes energy during operation.
4. Extension platform
The platform can be moved out, expanding the scope of work and meeting the special needs of some users.
5. Green environmental protection
Since the machine is powered by DC batteries, this machine can be safe and quiet for indoor or outdoor work.
6. Safety certification
It complies with the EU EN280 standard and has obtained CE certification.
7. Strong power, intelligent and safe
25% climbing ability, can climb up the slope smoothly, and the fault code is automatically displayed for easy maintenance.
